Solar LED

Aircraft Warning Light

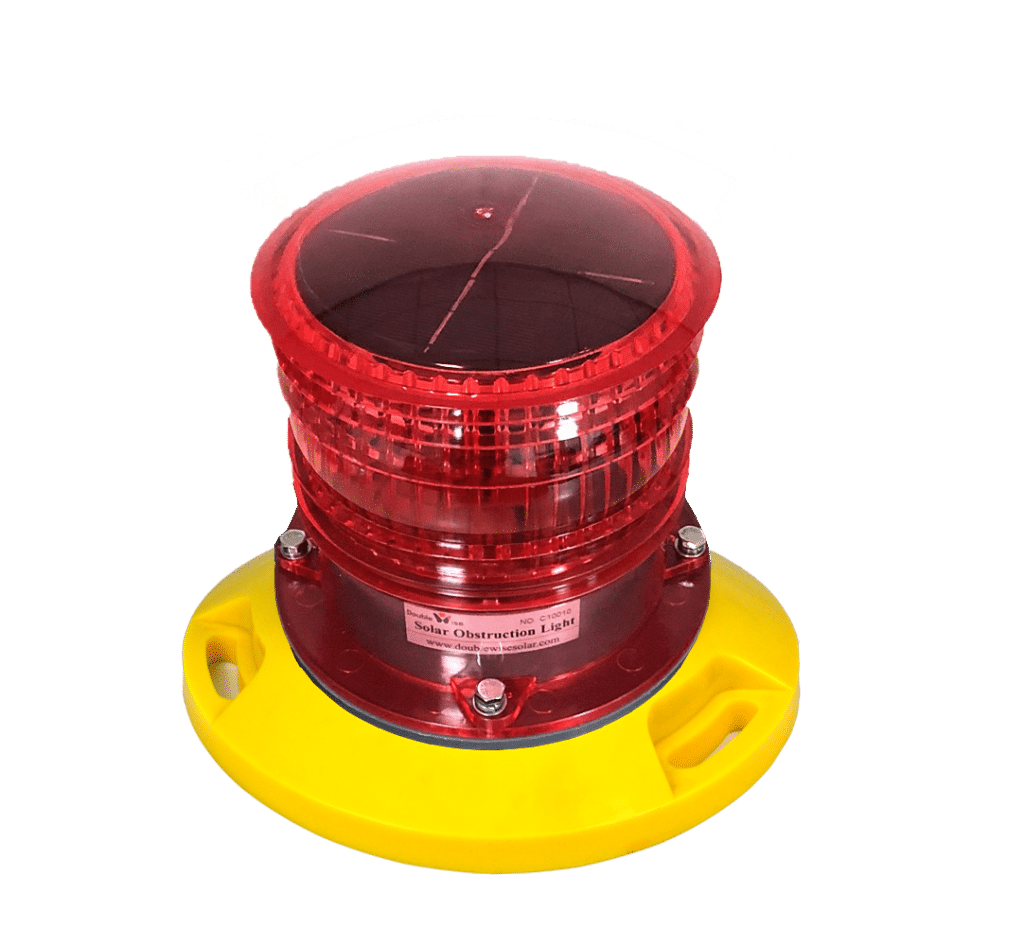

The solar airfield obstacle light DWS301A is an ICAO low-intensity Type A aircraft warning light with the characteristics of solar self-contained, durable and anti-UV . Because Buildings and smaller obstructions located near airports should be marked with steady-burning red lights.,this airport obstruction light is generally used as the Airfield Obstacle Warning on dangerous Prominent Parts . It installs in minutes and requires no maintenance or servicing for up to five years.

low intensity

Red, Steady-on
its intensity is more than 10cd
Solar panel 1.5Wp
replaceable Ni-HM battery 4.8Ah

Automatic and Reliable

Charge under nearly all weather conditions and its minimum autonomy up to 70 hrs from a full charge
Completely solar self-contained and waterproof IP65
The individual dome can protect the solar panel and prolong its efficiency

High quality

The lens is polycarbonate with anti-UV which is produced by Bayer
Manufactured to ISO9001:2015 QAS and certified CE

Specifications

Structure & Dimension

Typical Applications

FAQ

Specifications

SPECIFICATIONS
Name		Solar Obstacle Light
MODEL		DWS301A
Source		Ultra-intensity LED
Visibility		3km
Light Output	Horizontal Output	360°
Intensity	Color
Intensity	Red	more than 10cd
Vertical Divergence		±7.5° at 50% intensity
Minimum Autonomy		70hrs
Solar Panels		Mono-crystalline Maximum Power: 1.5w Efficiency: 20%
Battery		Ni-Mh battery Replaceable 4.8Ah/2.4V
Construction	Lens Material	Polycarbonate
Construction	Weight	0.9kg
Waterproof		IP65
Quality Assurance		ISO9001:2015
Quality Assurance	CE	CTR090817073E
Chinese Patents		02224444.1 and 2014304444553

Structure & Dimension

Typical Applications

Buildings and smaller obstructions located near Airfields

Frequently Asked Questions

Have a Question?

We are here to help you 7 days a week and respond within 24 hours. Plus, you can find most answers to your questions right on this page.

How to determine the kind of an obstacle light?

According to ICAO standards,the characteristics of low-intensity obstacle lights are as follows:

Light Type	Color	Signal Type/(flash rate)	Peak Intensity(cd)	Intensity(cd) at given angles
				+6°	+10°
Low-intensity,Type A	Red	Fixed	10 Min.	10 Min.	10 Min.
(fixed obstacle)
Low-intensity,Type B	Red	Fixed	32 Min.	32 Min.	32 Min.
(fixed obstacle)
Low-intensity,Type C	Yellow/Blue	Flashing	40 Min.
(mobile obstacle)		(60~90fpm)	400 Max.
Low-intensity,Type D	Yellow	Flashing	200 Min.
(Follow-me Vehicle)		(60~90fpm)	400 Max.

How to install the solar obstruction light?

1. Direct installation

The Drawing and Hole map of DWS301A are as follows:

2. With the Flangebase

The solar obstruction light DWS301A can also be connected to other structures via a Flangebase, as shown in the figure in the The Figure in Structure & Dimension.
