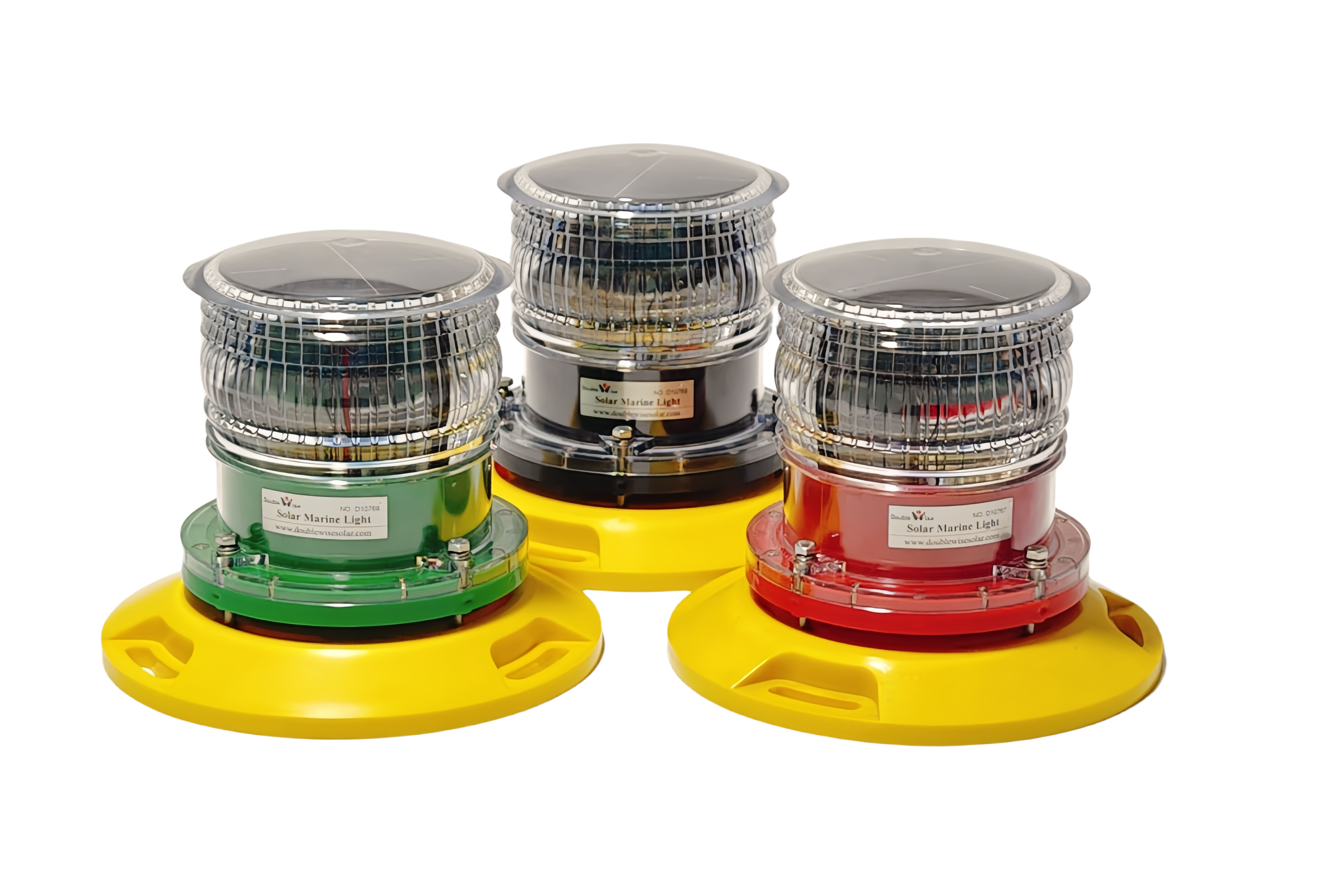

Solar LED

3NM Barge Navigation Light

The Solar LED Barge Navigation Light DWS305/3NM is specially designed for the navigation safety of the non-powered seagoing vessels such as Barge, Dredger or Tug boats etc.. This LED barge light complies with COLREGS(1972) ,UL 1104 and EN 60945(2002) standards, with a visibility of more than 3 Nautical Miles and an autonomy 120 hours. It has the characteristics  of  solar self-contained, durable ,anti-UV & easy-installation. The boat signal light can be easily installed on vessels without cable and professional training.


Reliable and steady for marine environment

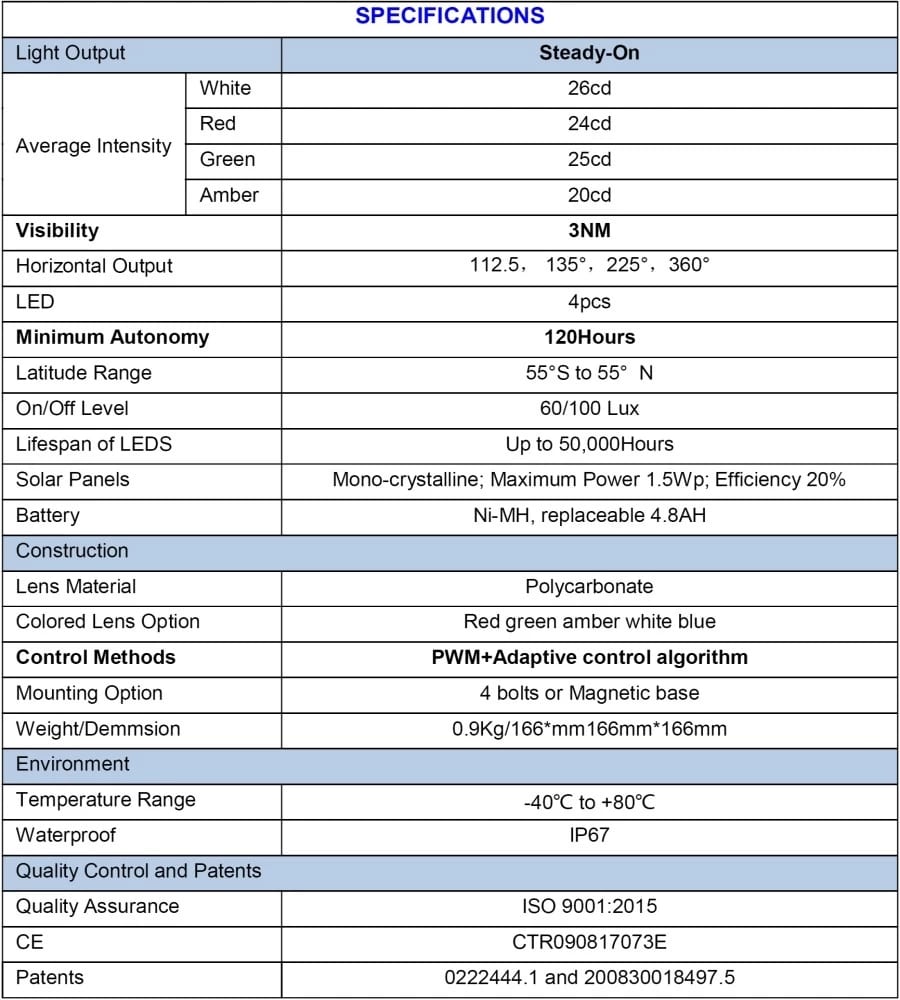

Steady-on and its visibility: 3NM Solar panel 1.5Wp, replaceable Ni-HM battery 4.8Ah. Light Output : 112.5°Port/Starboard;135°Stern;225° Masthead.

Unique design against difficult condition

Charge under nearly all weather conditions and up to 120 hrs of operating capacity from a full charge. Individual dome can protect the solar panel and raise its efficiency. Lens is polycarbonate with anti-UV which is produced by Bayer.

Low maintenance

Turns on at dusk and off at dawn automatically. Completely self-contained.

Manufactured to ISO9001:2015 QAS and certified CE

Conform to latest international standard

System Configuration


Application User Case

Marine Navigation
 Special  Navigation
• Deck Barge
• Dredger
• Crane Barge
• Tug Boat
• Pontoon
• Tow
Frequently Asked Questions

Have a Question?

We are here to help you 7 days a week and respond within 24 hours. Plus, you can find most answers to your questions right on this page.

Using solar navigation lanterns is a best choice for non-powered vessels such as barge,Dredger,Tug or Tow boats etc..

Yes,you can easily turn off this lantern by a touch switch in the side of it.We also suggest that you turn off it when it isn’t used for a long time.So it is only charged during the day and discharged at night.

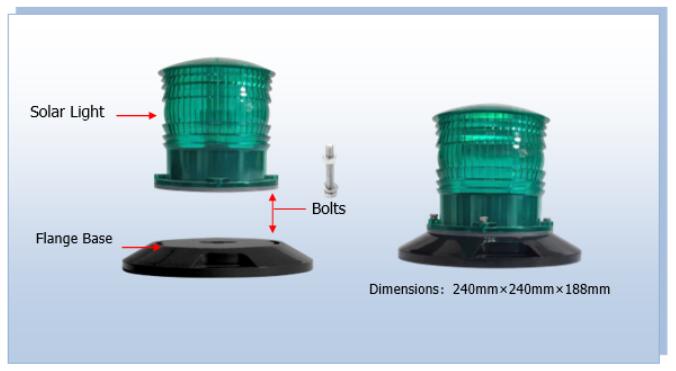

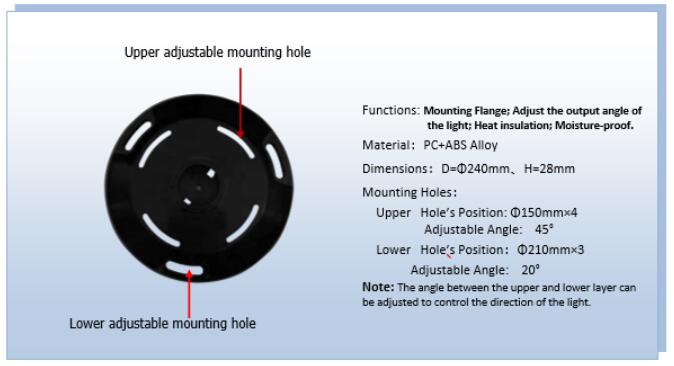

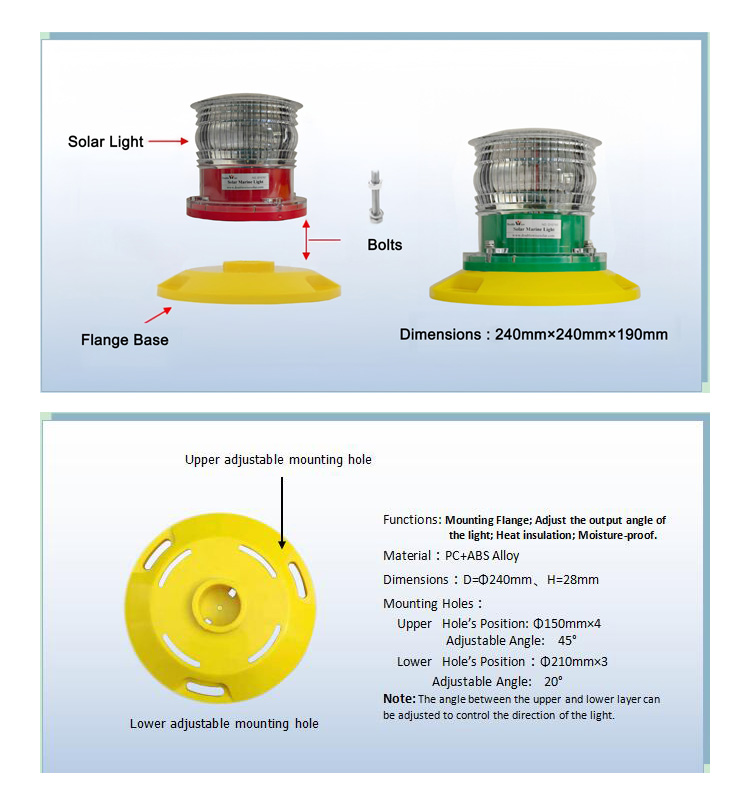

Yes,there is the installing adapter FlangeBase as follows. In order to better heat insulation and waterproof, we recommend to use it.
