Solar Heliport Perimeter Light

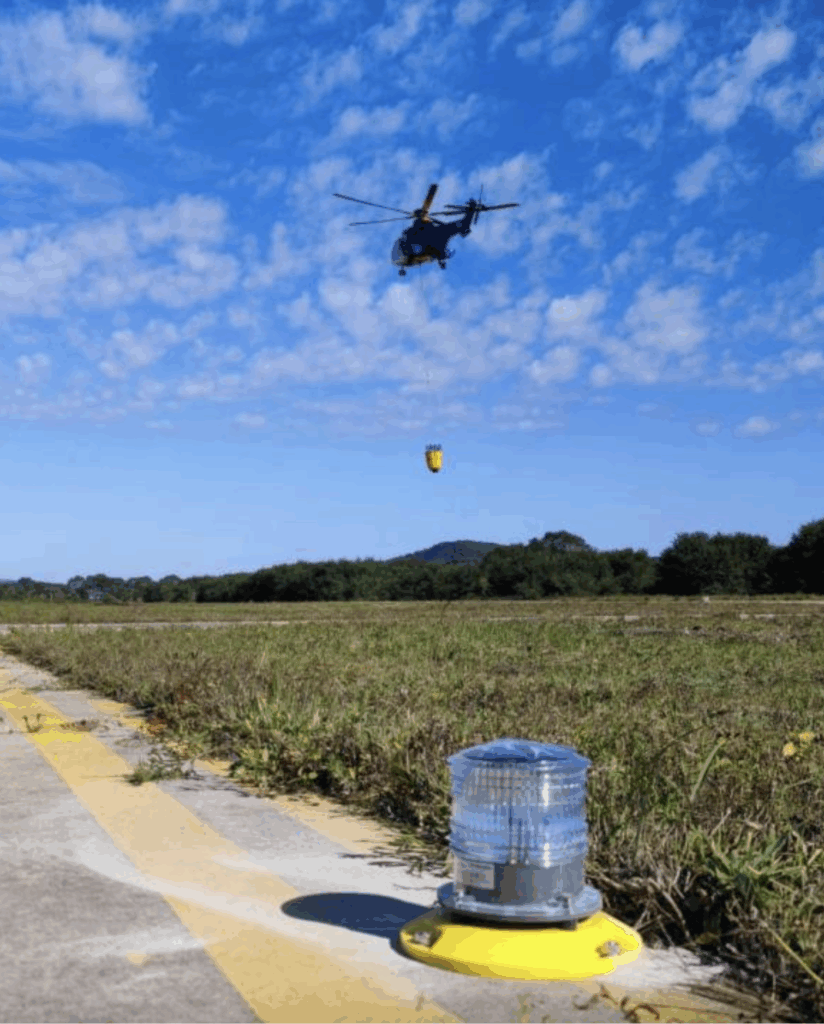

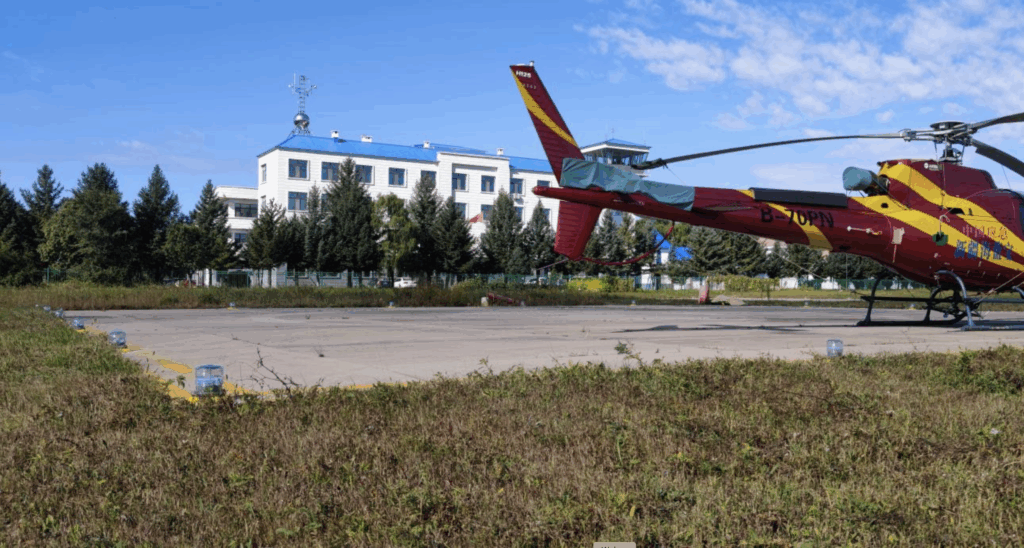

DWSAN301G is a wireless Solar powered Led Heliport Perimeter Light for that complies with ICAO Annex 14 Volume Ⅱ. It meets traditional helipad lighting as FATO approach lights or TLOF perimeter lights in a low-cost, easy-to-install and low-maintenance way. Because of the characteristics of solar self-contained, durable and anti-UV, it can be suitably used for Helipad Lighting systems without electricity and cabling.
FATO approach lights shall be fixed omnidirectional white lights placed along the edges of the Final Approach and Take-Off area(FATO). The FATO lights should not exceed a height of 25cm.
The solar Helipad Lighting System is composed of Wireless remote controller, TLOF perimeter lights, FATO landing lights, Flood lights, Heliport Beacon and Illuminated windsock etc.. These heliport lights are powered by solar energy and can be controlled by the wireless controller which effective control distance is 1000m.
| SPECIFICATIONS | |||
|---|---|---|---|
| Name | Solar Heliport Perimeter Light | ||
| MODEL | DWSAN301G | ||
| Intensity Adjustment | Adjustable Low/Medium/High by a wireless remote controller | ||
| Light Output | 360°, STEADY ON | ||
| Lifespan of LEDS | up to 50,000 hours | ||
| Minimum Autonomy | 120hrs | ||
| Solar Panels | Mono-crystalline；Maximum Power 1.8Wp；Efficiency 20% | ||
| Battery | Ni-Mh, replaceable；5Ah/4.8V | ||
| Lens Material | Anti-UV Bayer® Polycarbonate | ||
| Height with a Flange base | 190mm | ||
| Quality Assurance | ISO9001:2015 |
