Solar Heliport Floodlight

DWSAN609 is an solar powered Heliport Flood light specially designed for providing glare-free, uniform surface lighting for landing and loading activities. The solar floodlights improve pilot depth perception by reflecting the surface of the helipad, allowing pilots to better estimate their altitude during landing.Because of the characteristics of self-contained, durable and anti-UV, it can be widely used for helipad Lighting systems without High-voltage and cabling. If required, the solar heliport floodlight should be located on ground level and installed around the TLOF.

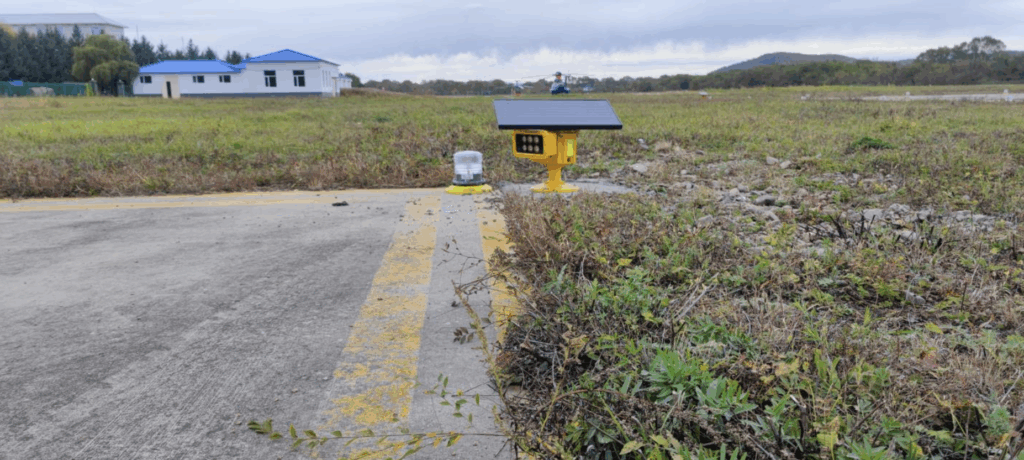

Solar Heliport Floodlight - Close Look
SPECIFICATIONS
NameSolar Heliport Floodlight
MODELDWSAN609
Light OutputUnidirectional optic with adjustable angles, Steady-on
Maximum power consumption36 W
SourceLED or NVG(Optional)
Colors180° White
Average Intensity23000cd
Minimum Autonomy at
Low/Medium/High Intensity
180/60/10 Hours
Lifespan of LEDSup to 100,000 hours
Solar PanelPoly-/Mono-crystalline; Maximum Power 10~30Wp; Efficiency 21%
BatteryLithium, replaceable;10~24Ah/12V
Wireless ControlOperating frequency: 433 MHz; Operating range: up to 3 km
MaterialsOptical Head: Aluminum, Glass covered by anti-reflective layer

Light body: Aluminum
Frangible mounting: Aluminum
Dimension & WeightDimensions (LxWxH): 360mm x 360 mm x 360 mm

Weight: 12KG
Temperature Range-40℃ to 70℃
WaterproofIP65
Quality AssuranceISO9001:2015
